| Brand Name : | RUIARA |
| Model Number : | TS00501 |
| Certification : | SGS/REACH |
| Price : | negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability : | 1W / Days |
| Delivery Time : | 15 days |

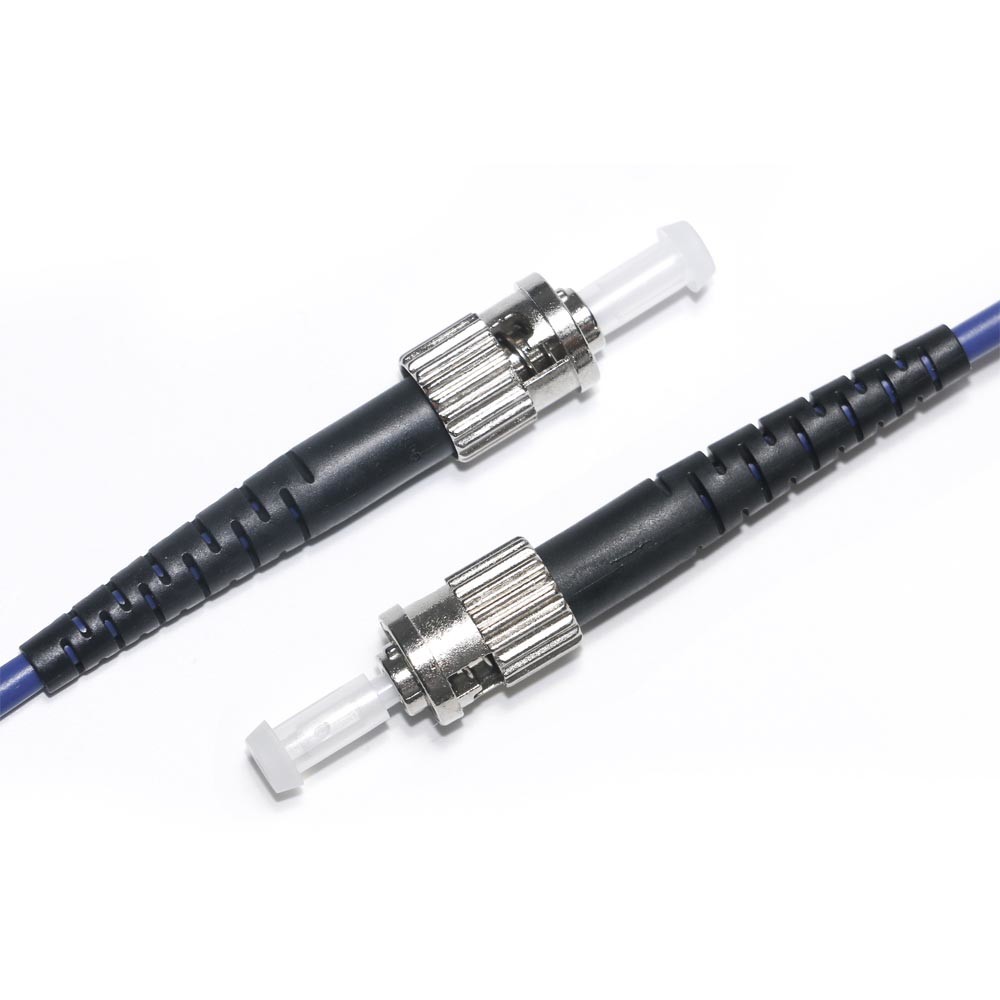

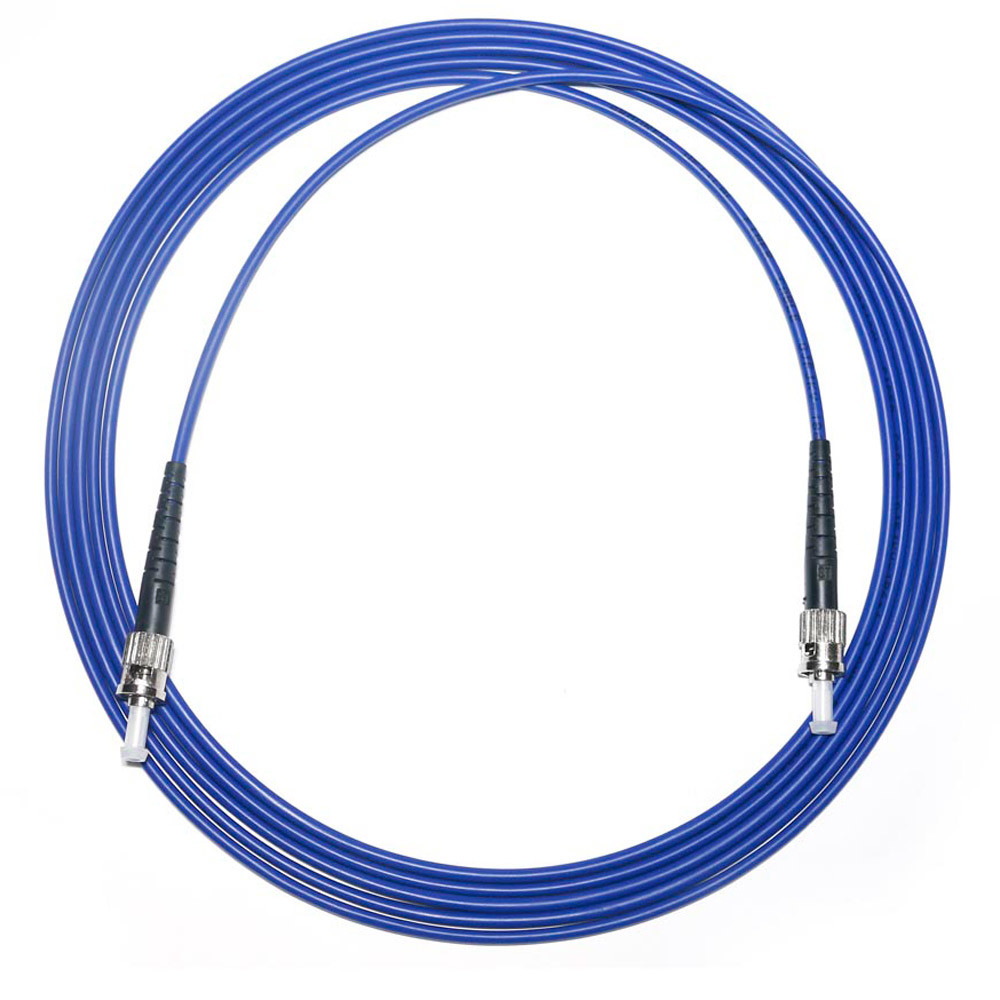

Fiber Optic Patch Cord ST Dual-Core Single-Mode 1/1
About this item:
Core: Single Mode Fiber
Density: Simplex
Finish/Size: PC Polish
Mechanical properties
Interchangeability (dB): ≤ 0.1
Vibration (dB): ≤ 0.1 (5 to 50Hz, 1.5mm)
Tensile strength (dB): ≤ 0.1 (0 to 15Kg pull)
The high temperature ≤ 0.2dB (+85 ° C for 50 hours)
Low temperature ≤ 0.2dB (-40 ° C for 50 hours)
Temperature cycling ≤ 0.2dB (-40 ° C to 85 ° C, 5 cycles)
Humidity ≤ 0.2dB (-25 ° C ~ 65 ° C, 93%)
Application:
& Signal transmission and data transmission
& Telecommunications network, local area network (LAN), metropolitan
area networks, optical fiber communication systems
& Fiber optic test equipment / instrumentation
& Optical fiber CATV (cable television), optical fiber sensors
& Fiber-optic broadband-home, FTTH fiber to the home
& Fiber optic patch panels, rack and wall mount fiber optic wiring
unit
| Fibra de modo | SM | MM | ||
| Final rosto | PC | UPC | APC | PC |
| IL (dB) | ≤0. 3 | ≤0. 2 | ≤0. 3 | ≤0. 3 |
| RL (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Outro modelo | MT-RJ, MPO | |||
| IL (dB) | ≤0. 7 | / | ≤0. 7 | ≤0. 5 |
| RL (dB) | ≥30 | / | ≥50 | ≥25 |
|
|
