| Brand Name : | monoluxtecs |
| Model Number : | TS00827 |
| Certification : | Rohs, ISO9001 |
| Price : | negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Delivery Time : | 15/work day |

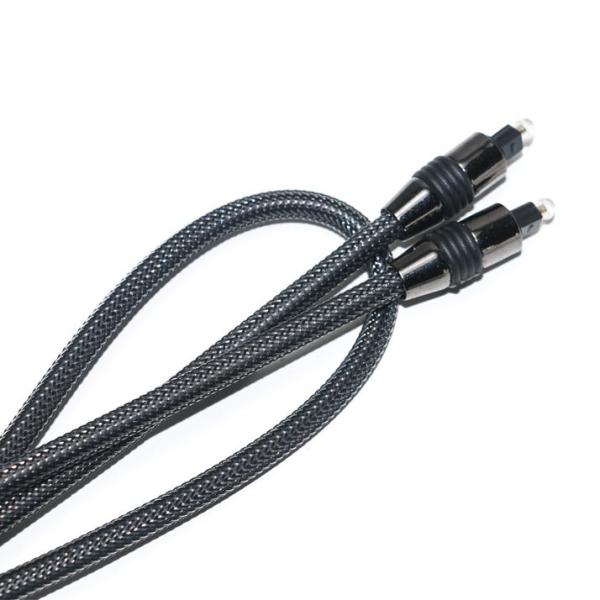

Factory Outlet Brand New Toslink Audio Digital Cable Nylon Braided OD4.0 Metal Shell Gold Plated Connector
About this item:
❤ [Protect Your Toslink with Braided Nylon]: Toslink digital optical audio cable Also has built-in end caps to protect your connectors. No longer worry about broken connection points.
❤ [Interference Free Toslink Cable]:No more Interference! Constructed from a high-quality fiber that completely eliminates RF, EM, and group loop interference.
❤ [Premium Quality Design]: Toslink cable is designed with high-quality parts. With metal connections and a durable nylon mesh jacket this cable is optimized for maximum protection against wear and tear.

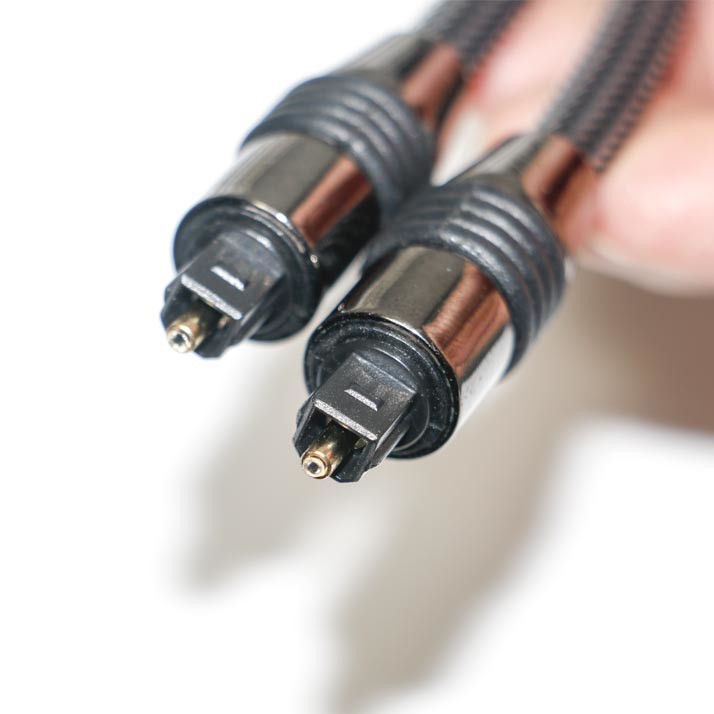

❤ [Gold-Plated Connector]: This Toslink digital optical cable has 24k gold-plated connections and ferrules that resist corrosion, tarnish, and provide maximum protect for the fiber tip.
Parameters:
◆ [Length] 1.5m standard, 1.8m, 2m, 3m, 5m, 8m, 10m (various lengths can be
customized)
◆ [Color] Blck woven net
◆ [Size] OD7.0MM
◆ [Interface type] LSZH PVC plated dard grey aluminum alloy
◆ [Plug type] Pure copper gold-plated plug, good texture
◆ [Wire] High-density woven mesh shielding layer, soft wire body, not easy
to oxidize
◆ [Application] Audio socket equipment such as TVs, computers, video recorders, set-top boxes, digital cameras, etc.
◆ [Packing] Neutral pearlescent bag packaging (packaging can be customized
according to customer needs)
◆ [Product use] Through this line, the audio signal applied to communication audio
playback equipment such as video recorders, power amplifiers,
digital TVs, set-top boxes, etc. is output to the speakers
| Parameter | Unit | Numerical value |
| Fiber optic core diameter | mm | Φ1.0;customized accept Φ0.25,Φ0.50,Φ0.75 |
| Fiber optic core material | --- | PMMA |
| Finished product diameter | mm | Φ2.2;customized acceptΦ2.2mm-10.0mm |
| Outer material | --- | Antiflaming CPE,Antiflaming PE, Antiflaming PVC,Nylon PA,TPU,TPR |
| Outer color | --- | Black ;customized accept other colors |
| Application lighwave | nm | 650 or 530 |
| Attenuation | dB/km | <180 refraction |
| Refractive index | --- | SI |
| Bend radius | --- | 5xcore Diameter |
| Numerical aperture (N.A) | --- | 0.5;customized accept 0.3-0.6 |
| Incident angle | --- | 60° |
| Splice loss | dB | <0.5 |
| Tensile strength | N | ≤1.0dB(0~80N) |
| Vibration | --- | ≤1.0dB(5~50HZ,1.5mm amplitude) |
| Working temperature | °C | -55°C~+85°C |
| Storage temperature | °C | -55°C~+85°C |
| Quality standard | --- | EU, ROHS, Japan standard(G.653),China industry standard 90001 |
|
|
