6 Years
| Ask Lasest Price | |
| Brand Name : | RUIARA |
| Model Number : | TS00511 |
| Certification : | SGS/REACH |
| Price : | negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability : | 1W / Days |
| Delivery Time : | 15 days |

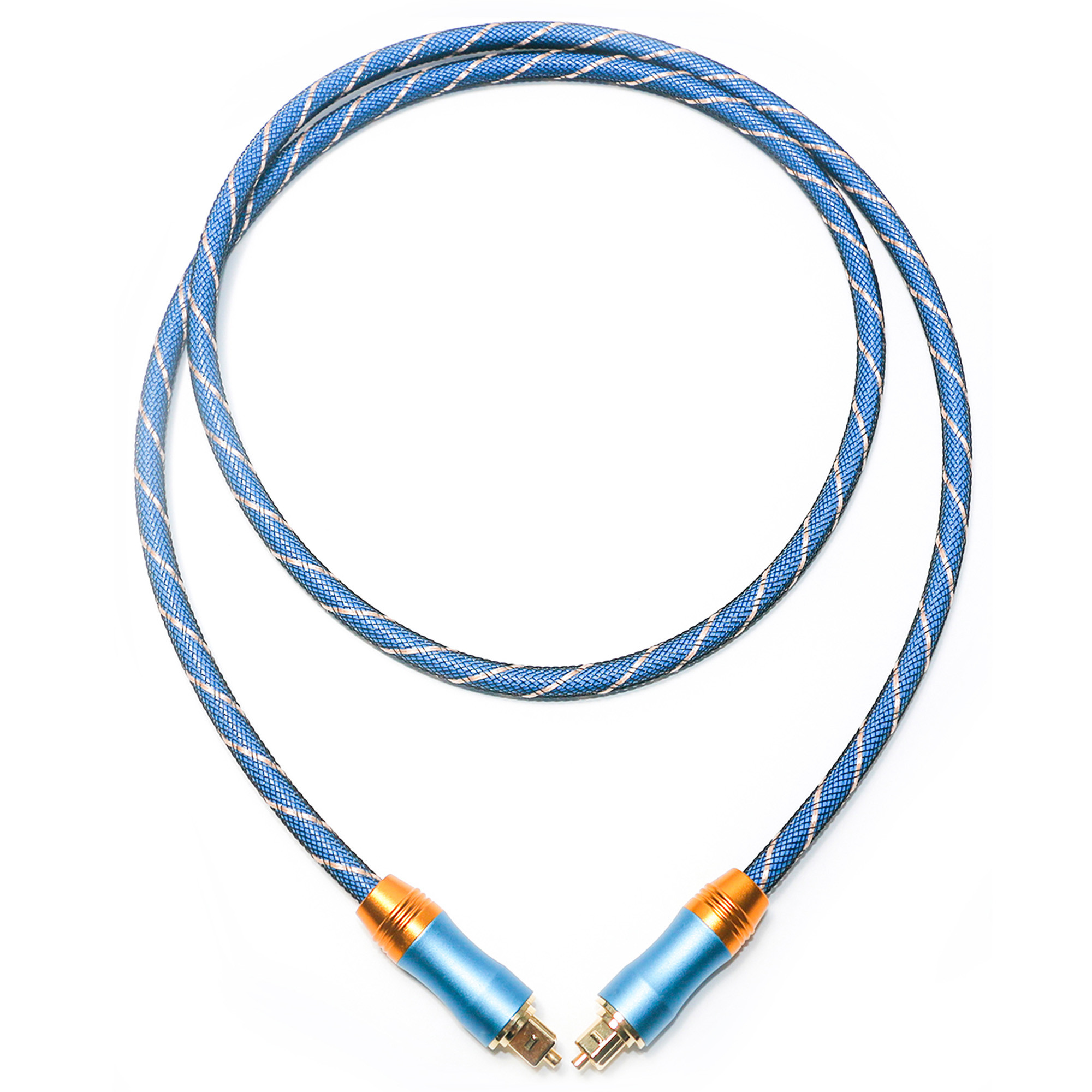

Toslink Digital Cable Premium OD6.0 Knited Rope Plated Frosted Shell Square Interface Blue 1.5M HiFi Sound For Subwoofer
About this item:
❤ Optical fiber transmission, better sound quality.
❤ The flexible cable body optical fiber transmits digital signals in
the form of light beam, which is not interfered by electromagnetic
and noise, no noise, the cable body is soft and resistant to
bending, and the bending does not affect the transmission sound
quality and clearer.
❤ The dust cap protection connector is specially made by micro convex
lens technology, the 650 nanometer red beam is highly focused, the
signal transmission is ultra-low loss, the sound quality is
clearer, rust, dust and other phenomena, so that the cable has a
longer service life.
Parameters:
◆ Name: TOSLINK Audio Optical Cable
◆ Brand: Monoluxtecs
◆ Color: Blue
◆ Core diameter (mm): Ø1.0
◆ Wire diameter (mm): Ø6.0
◆ Exterior: Knited texture pattern coating
◆ Operating temperature: -55℃～+70℃
◆ Model:Tosllink connector is connected to the clamping structure
◆ Transmission loss (wavelength: 650nm) 180～200dB/km
◆ Insertion loss (wavelength: 650nm) Max: 1.0db Interchangeability Max: 1.0db (random transformation)
◆ Minimum bending radius: 25mm tensile strength:Max: 1.0dB (0～70N)
◆ Vibration test: Max: 1.0dB (5～50Hz, 1.5mm amplitude)
The reason why Choose us:
◆ On time delivery
◆ Customization
◆ Factory outlet
◆ Micro convex lens technology.
◆ Large product inventory with massive production line
◆ China's professional gas detection leader
◆ Quality guarantee
| Parameter | Unit | Numerical value |
| Fiber optic core diameter | mm | Φ1.0;customized acceptΦ0.25,Φ0.50,Φ0.75 |
| Fiber optic core material | --- | PMMA |
| Finished product diameter | mm | Φ2.2;customized acceptΦ2.2mm-10.0mm |
| Outer material | --- | Antiflaming CPE,Antiflaming PE, Antiflaming PVC,Nylon PA,TPU,TPR |
| Outer color | --- | Black ;customized accept other colors |
| Application lighwave | nm | 650 or 530 |
| Attenuation | dB/km | <180 refraction |
| Refractive index | --- | SI |
| Bend radius | --- | 5xcore Diameter |
| Numerical aperture (N.A) | --- | 0.5;customized accept 0.3-0.6 |
| Incident angle | --- | 60° |
| Splice loss | dB | <0.5 |
| Tensile strength | N | ≤1.0dB(0~80N) |
| Vibration | --- | ≤1.0dB(5~50HZ,1.5mm amplitude) |
| Working temperature | °C | -55°C~+85°C |
| Storage temperature | °C | -55°C~+85°C |
| Quality standard | --- | Europe ROHS,USA standard(SONET.OC-48),Japan standard(G.653),China industry standard(YD/T1447-2006) |
Q&A
Q:Are you trade company or factory?
A: Actually we're manufacturer professional in FTTH drop cable, RCA cable, toslink, digital audio cable,audio cable etc. our product 100% tested. We have been many years experience in this field. We are the prefessional supplier that you can trust.
Q:Do you have any certification?
A: We do have certification. our company have certificated ISO9001, our optical fiber with 14001 test, audio cable with RoHs, Certification for CE and senior member of audio Association so on.
Q:What is your quality control for your fiber optic product ?
Firstly Source Guarantee: We have our own long-term cooperation raw material suppliers. All
the products are ROHS certificated and satisfy exporting quality
level demand.
Secondly Quality Test: It runs through the whole process from the raw material to finished
product, such as package, surface, physical test, optical test.
They are 100% tested.
Thirdly Product Protect Process: We have 30% spot test by Quality Assurance Department after the
products finished.
Q:Why choose us?
A: We're high-quality digital audio cable suppliers, we own 2 factories in China so we got low product price advantage. we offering lower price cost products and service delivery, adhering to the purpose of making customers worry-free, wholehearted and thoughtful service, made merchandise more all wool and a yard wide.
|
|
